Passenger Elevators
A. Auto Door
Auto Door Passenger Elevators for Residential, Commercial Buildings, Hotel, Clubs & Bungalows depending upon the shaft size with speed / amenities up to choice of owners.
Various options are available:
| Speed | 0.70 to 1.5 mt/ps |
| Capacity | 06 to 20 passengers |
| Car Finish | MS powder Coated Car. Stainless Steel Hair line Finish Car Steel Designed & Steel Hair line Finish Car Steel Mirror & Steel Hair line Finish Car Titanium Gold designed with stainless steel Finish Car |
| Type of Door | Center-Opening Auto Door Telescopic Auto Door |
| Doors Finish | MS powder Coated Auto Door. Stainless Steel Hair line Finish Auto Door Stainless Steel Designed Finish Auto Door Titanium Gold Designed Finish Auto Door Glass With Stainless Steel Framed Finish Auto Door |
| Switch Panels Button | Surface Micro Electro Button Touch Button |
| Switch Panel Display | Seven Segment Digital LED Display Digital Dot Matrix Display LCD Display |
Hoist way machine room size
Passenger Lift with auto doors
| Load | Lift Weel | Car Inside | ENT Rance | Machine Room | UP To 1.5 M/Sec. | Up To 2.5 M/Sec. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Person | Weight | Width | Depth | Width | Depth | Width | Depth | Height | PIT | O.H. | PIT | O.H. | |
| IN KG. | A | B | C | D | E | F | G | H | I | J | K | M | |
| 6 | 408 | 1700 | 1550 | 1100 | 1000 | 700 | 3000 | 3500 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 8 | 544 | 1900 | 1650 | 1300 | 1100 | 800 | 3200 | 3500 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 10 | 680 | 1900 | 1900 | 1350 | 1300 | 800 | 3500 | 4000 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 13 | 884 | 2500 | 1650 | 2000 | 1100 | 900 | 4000 | 4200 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 16 | 1088 | 2500 | 1850 | 2000 | 1300 | 1000 | 4500 | 4800 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 20 | 1360 | 2500 | 2050 | 2000 | 1500 | 1000 | 5000 | 5000 | 2500 | 1600 | 4800 | 2600 | 6700 |

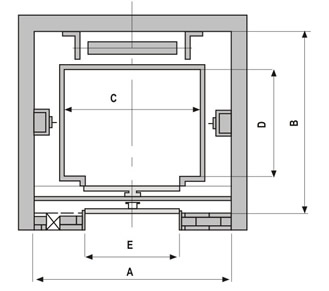

Hoistway Machine Room plan for auto door

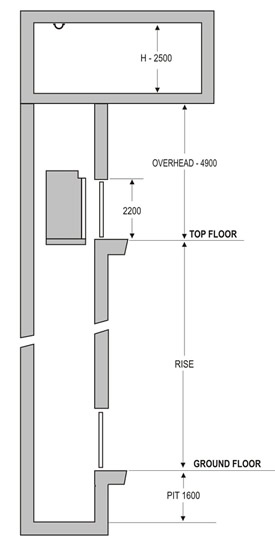

Hoistway Elevation Drawing
Premium Range
SLPL-P01
Side Walls : S.S Black Mirror + Corner S.S Hairline
Back Wall : Full length mirror.
Ceiling : CE-P01
Handrail : HEPL-HR01
Flooring : Black Tiles
SLPL-P02
Side Walls : Polished Oak Finish. Gaps-skirting S.S Mirror
Back Wall : ¾ Height Mirror.
Ceiling : CE-P02
Handrail : HEPL-HR04 M.S Powder Coated
SLPL-P03
Side Walls : S.S Mirror + Corner S.S Hairline
Back Wall : Full length mirror.
Ceiling : Mirror with CFL cutout + Chandelier
Handrail : HEPL-HR02
Flooring : Granite
SLPL-P04
Side Walls : Plastic Laminate + Corner S.S Hairline
Back Wall : Half length mirror + Plastic Laminate
Ceiling Type : CE-P04
Handrail : HEPL-HR01
Flooring : Black Carpet
Modern Range

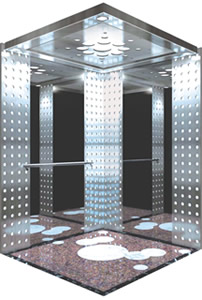

SLPL-M01
Walls : S.S Mirror + Perforated S.S Hairline with acrylic in the back
Ceiling : CE-M01
Handrail : HEPL-HR01
Flooring : Granite

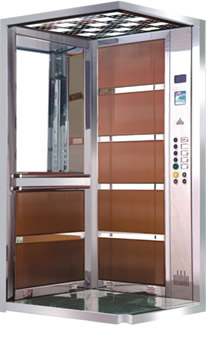

SLPL-M02
Side Walls : Laminate + Gaps-skirting S.S Mirror
Back Wall : Half Height Mirror + Laminate
Ceiling : CE-12
Handrail : HEPL-HR03
Flooring : Natural Granite
SLPL-M03
Side Walls : M.S Powder Coated Yellow Corner S.S Mirror
Back Wall : Half Height Mirror.
Ceiling : Mirror with cutout.
Handrail : HEPL-HR02
Flooring : Black Carpet
SLPL-M04
Side Walls : S.S Mirror + Lightened Plexiglass
Back Wall : Full Height Mirror.
Ceiling : M.S Powder Coated Arched
Handrail : HEPL-HR01
Flooring : Black Granite
SLPL-M05
Walls : S.S Mirror + S.S Mirror Etching
Ceiling : CE-M05
Handrail : HEPL-HR03 on all the walls
Flooring : Black Carpet
Royal Range
SLPL-R01
Side Walls : Laminate + Corner Hairline Mirror.
Back Wall : Half Height Mirror + Laminate.
Ceiling : M.S Powder Coated Arched
Handrail : HEPL-HR01
Flooring : Granite
SLPL-R02

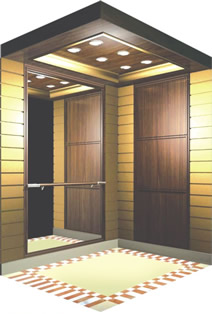

Side Walls : Wooden Laminate
Back Wall : Full Height Mirror + Laminate
Ceiling : Laminate with CFL lights
Handrail : HEPL-HR01
Flooring : Black Carpet

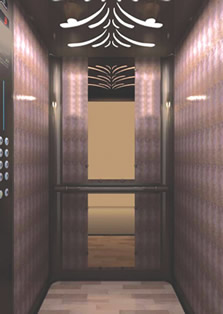

SLPL-R03
Side Walls : Wooden Laminate
Back Wall : Full Height Mirror + Laminate
Ceiling : CE-R03
Handrail : HEPL-HR01
Flooring : Tiles

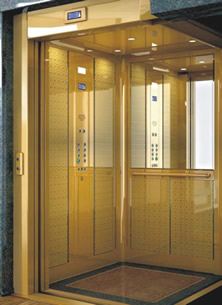

SLPL-R04
Side Walls : S.S Gold Mirror Etching + Corner S.S Gold Mirror
Back Wall : Half Height Mirror + S.S Gold Mirror Etching
Ceiling :Gold Mirror with CFL cutout
Handrail : HEPL-HR03
Flooring : Granite with Design.
Economy Range
SLPL-E01
Side Walls : S.S Hairline
Back Wall :Full Height Mirror
Ceiling :CE-P02
Handrail : HEPL-HR01
Flooring :Carpet
SLPL-E02
Side Walls : M.S Powder Coated – Broken White. Corner – Brown.
Back Wall : Half Height Mirror
Ceiling : CE-E02
Handrail : HEPL-HR04
Flooring : Black Carpet
SLPL-E03
Side Walls : S.S Hairline.
Back Wall : Half Height Mirror.
Ceiling : CE-E02
Handrail : HEPL-HR04
Flooring : Carpet
SLPL-E04
Side Walls : M.S Powder Coated Ivory.
Back Wall : Half Height Mirror.
Ceiling : CE-E02
Handrail : HEPL-HR04
Flooring : Carpet
B. Manual Door
Manual Passenger Elevators for economically suited all type of Residential & Commercial Buildings depending upon the shaft size with speed / amenities up to choice of owners.
Various options are available:
| Speed | 0.70 to 1 mt/ps |
| Capacity | 04 to 30 passengers |
| Car Finish | MS powder Coated Car. Stainless Steel Hair line Finish Car Steel Designed & Steel Hair line Finish Car Steel Mirror & Steel Hair line Finish Car |

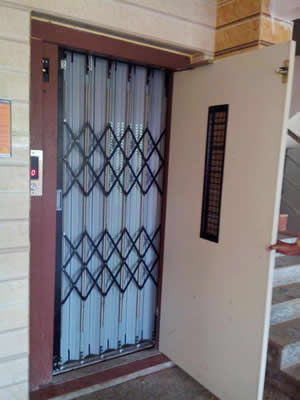

| Doors Finish | M.S Swing Manual Doors M.S Collapsible Manual Doors Wooden Swing Manual Doors |
| Switch Panels Button | Surface Micro Electro Button |
| Switch Panel Display | Seven Segment Digital LED Display Digital Dot Matrix Display |
Hoist way machine room size
passenger lift with manually operated doors
| LOAD | LIFT WELL | CAR INSIDE | ENTRANCE | MACHINE ROOM | |||||
|---|---|---|---|---|---|---|---|---|---|
| PERSON | WEIGHT | WIDHT | DEPTH | WIDTH | DEPTH | WIDTH | DEPTH | HEIGHT | |
| IN KG. | A | B | C | D | E | F | G | H | |
| 4 | 272 | 1600 | 1200 | 1100 | 700 | 700 | 3000 | 3000 | 2500 |
| 6 | 408 | 1600 | 1500 | 1100 | 1000 | 700 | 3000 | 3500 | 2500 |
| 8 | 544 | 1700 | 1600 | 1300 | 1100 | 800 | 3200 | 3500 | 2500 |
| 10 | 680 | 1850 | 1800 | 1350 | 1300 | 800 | 3500 | 4000 | 2500 |
| 13 | 884 | 2500 | 1600 | 2000 | 1100 | 900 | 4000 | 4200 | 2500 |
| 16 | 1088 | 2500 | 1800 | 2000 | 1300 | 1000 | 4500 | 4800 | 2500 |
| 20 | 1360 | 2500 | 2000 | 2000 | 1500 | 1000 | 5000 | 5000 | 2500 |

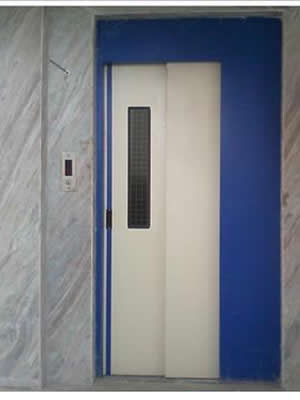

Manual Telescopic

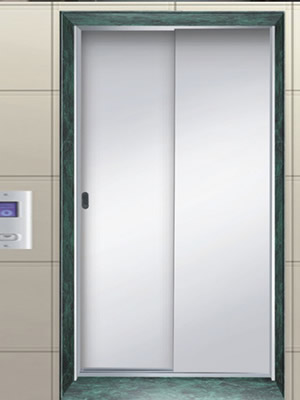

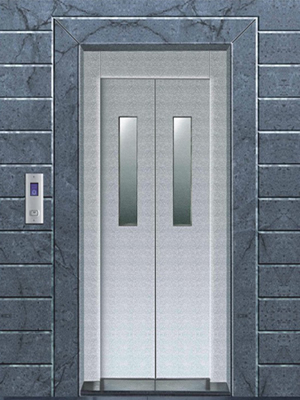

Swing Door
Swing Door
