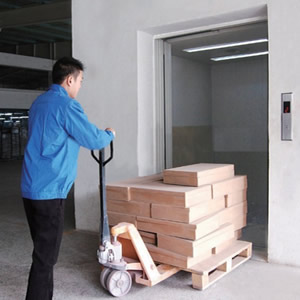

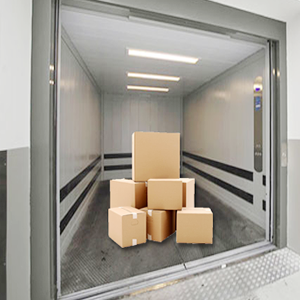

Goods Car Elevators

  • We provide a complete range of freight elevators of different load carrying capacity.

  • A Hind freight elevator in your building will make handling of goods easy & enhancing production.

  • We supply freight elevators with dust proof equipments as per our customers’ requirement.

  • Directly and indirectly, modern freight elevators make for efficient operation throughout the building.

  • The result of properly planned freight elevator installation show up in increased material handled volume and greater earning power.



Capacity Car Inside Lift Well Clear Opening Wall Opening Machine Pit Depth Over Head Speed
Load In Kg. A B C D E F G H Height M/Sec
500 1200 1200 1650 1650 800 X 2000 1150 X 2225 2700 2700 2500 1600 4200 0.35
100 1700 1600 2400 1900 1200 X 2000 1625 X 2225 3500 3000 2500 1600 4600 0.35
1500 2000 2000 2700 2300 1500 X 2000 2000 X 2225 4000 4000 2500 1600 4600 0.35
2000 2200 2500 2900 2800 1500 X 2000 2000 X 2225 4000 4200 2500 1600 4600 0.35
2500 2500 2500 3200 2800 1600 X 2000 2100 X 2225 4500 4500 2500 1600 4800 0.35
3000 2500 3200 3300 3500 1600 X 2000 2100 X 2225 4500 5200 2500 1600 5200 0.35
4000 2500 4000 3400 4300 2000 X 2000 2600 X 2225 4500 6300 2500 1600 5200 0.35

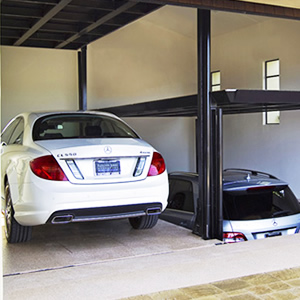

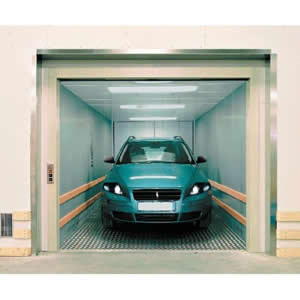

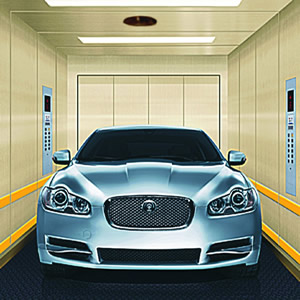

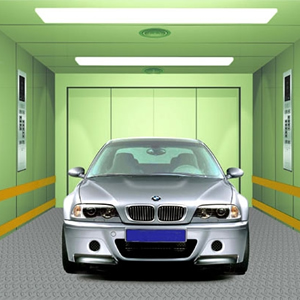

Elevators for four wheelers company - up to 3000 kg

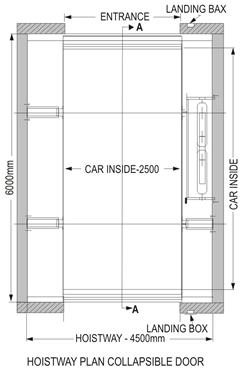

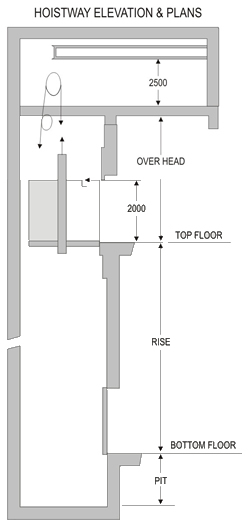

Hoist way machine room sizes

Capacity Car Inside Lift Well Claer Opening Wal Opening Machine Room Pit Depth Over Head Speed
Load in kg. A B C D E F G H Height M/Sec
2500 2300 5000 3400 5300 2000 X 2000 2600 X 225 4500 7000 2500 1600 5200 .0.35
3000 3200 5500 4000 5800 2500 X 2200 3200 X 2425 5000 7500 2500 1600 5200 0.35
3300 3200 5500 4000 5800 2500 X 2200 3200 X 2425 5000 7500 2500 1600 5400 0.35
