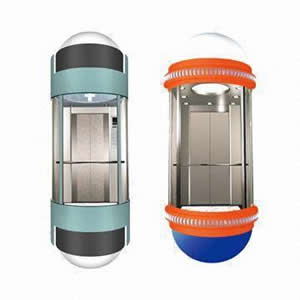

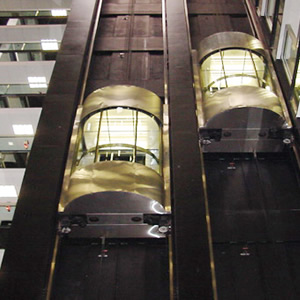

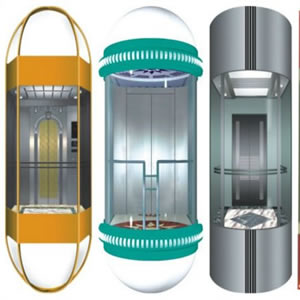

Capsule Elevators

  • Capsule elevators are inspired with creative flair to suit your particular idea.

  • Capsule elevators give an upscale, attractive feel to offices, shopping malls, multiplexes and other prestigious buildings.

  • They are offered in different sizes, specifications, shapes and capacity according to the requirements of our clients.

Features of the Capsule Elevators:

  1. Made from S.S. / M.S. with vision panel

  2. Color-Powder coated, Elegant looks, light in weight and variable speed.

  3. Controller Full Proof to voltage (PLC or Sold state) with fully collective-selective system.

  4. AC VVVF drives for jerk free operation & for variable speed.

  5. Overload indication and Auto Door announcing system.

  6. Avail Inverter facility for single base at time of Power failure.

  7. Push Button Luminous type highly attractive as well as durable.

  8. Facility Floor position Indication at the floors as well as in cabin.

Option-A

Load   Car Inside       Lift Well       Entrance
Persons Kg A B J G C D F H E
8 544 1000 1150 1325 700 2000 1225 1130 1100 800
10 680 1100 1150 1425 800 2200 1225 1230 1200 900
13 884 1200 1150 1550 925 2400 1225 1330 1225 1000
16 1068 1300 1250 1650 1016 2800 1325 1530 1425 1200

Option-B

Load   Car Inside       Lift Well     Entrance
Persons Kg A B G C D F H E
6 408 1000 1100 200 1800 1250 1230 470 700
8 544 1150 1200 200 2000 1380 1350 520 800
10 680 1250 1300 250 2200 1450 1480 580 900
13 884 1400 1400 300 2400 1550 1630 650 1000
16 1068 1550 1500 350 2800 1780 1650 790 1200

Option-C

Load   Car Inside       Lift Well       Entrance
Persons Kg A B J G C D F H E
8 544 1000 1200 1250 600 2000 1225 1230 1000 800
10 680 1100 1300 1400 650 2200 1325 1330 1100 900
13 884 1200 1400 1550 700 2400 1425 1430 1100 1000
16 1068 1300 1500 1700 750 2800 1525 1530 1200 1200
